SPANK SPIKE 33 FRONT Wheel

Product image 1
1 / 5

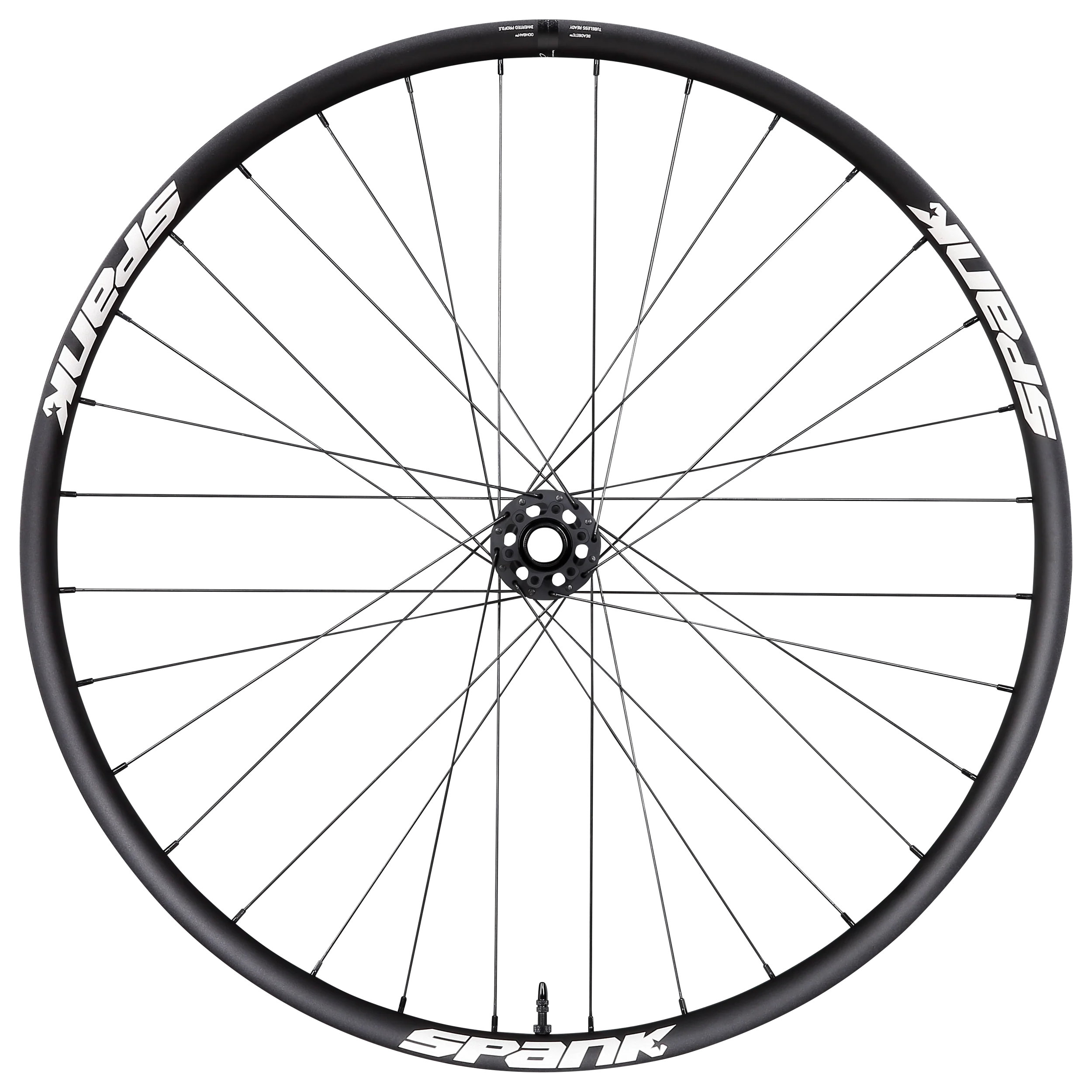

SPANK SPIKE 33 FRONT Wheel

  • A high-performance alloy rim designed for freeride, enduro and downhill race use
  • Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
  • 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
  • The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
  • Shotpeen finish to increase fatigue life and make it more durable

    Ā

    REAR WHEELS TO PAIR WITH:

    SPIKE RACE 33

    Ā

    CLASSIFICATION & INTENDED USE:Ā  ASTM 5

    ALL MOUNTAIN
    		 TRAIL
    		 ENDURO
    		 FREERIDE
    āœ”
    āœ”
    -
    āœ”
    DOWNHILL GRAVEL XC E-BIKE
    āœ”     		- - *

    Ā * Recommended for E-Bike whenĀ adapting with SPANK HEX DRIVEĀ steel freehub (available as seperate purchase in HG, XD and Microspline.Ā Ā (See Hex Drive Service Parts)

    Ā

    HUMAN FACTOR

    SPANK's recommendations for what body type and ride style this product is suited to.

    BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
    Heavy Impact
    āœ”
    āœ”
    āœ”
    Medium Impact
    āœ”
    āœ”
    āœ”
    Light impact
    āœ”
    āœ”
    āœ”

    Ā

    RIMĀ SPECIFICATIONSĀ

    HOLE COUNT:
    		 32
    INNER WIDTH (mm):
    		 28
    OUTERĀ WIDTH (mm):
    		 33
    PROFILE HEIGHT:
    		 22
    TYRE FIT
    		 1.9" to 2.5"

    Ā

    BUILDĀ SPECIFICATIONSĀ

    BUILD:
    		 Handbuilt
    HUB: SPANK HEX J-TYPE
    SPOKES:
    		 J-Hook, tripple butted 2.2/1.8/2.0
    NIPPLES:
    		 Brass external
    LACING:
    		 3 cross lacing
    VALVE: F/V Presta
    TUBELESS: Tubeless taped & valved

    Ā Ā

    VARIANT SPECS


    		 HUB HUB SPACING BOOST HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
    26"
    HEX J TYPE     		20x110
    		 - 32H 15x100
    		 845g 529++ 559x28 R-258 L-256
    27.5"
    HEX J TYPE
    20x110
    		 -
    32H     		15x100
    		 887g 554++ 584x28 R-269 L-267
    HEX J TYPE
    BOOST 15x110
    		 BOOST
    32H
    BOOST 20x110
    		 899g
    554++
    584x28
    R-269
    L-267
    29"
    HEX J TYPE
    20x110
    		 -
    32H
    15x100
    		 923g 591++ 622x28 R-288 L-286
    HEX J TYPE
    BOOST 15x110
    		 BOOST
    32H
    BOOST 20x110
    		 936g
    591++
    622x28
    R-288
    L-286

    Ā

    Use the table below to determine compatible adapters & service parts, or visit the service parts collection byĀ clicking here.Ā

    ADAPTERSĀ COMPATIBLE WITH SPANK HEX J-TYPEĀ FRONTĀ HUBS

    Boost F15/20

    HEX Ƙ32 Boost Front Hub Torque Caps Adapter

    F15/20

    HEX Ƙ32 Front Hub QRx100 Adapter

    HEX Ƙ32 Front Hub 12x100 Adapter

    All Hex J-Type Front Hubs

    HEX Ƙ32 Front Hub Boost 15x110 Conversion Kit

    Ā

    HEX Ƙ32 Front Hub Boost 20x110 Conversion Kit

    Ā

    SERVICE KITSĀ COMPATIBLE WITH SPANK HEX J-TYPEĀ FRONT HUBS

    HEX Ƙ32 Front Hub Replacement Bearing Kit

    Ā

    Ā

    Wondering how strong our wheels are?Ā  See what happened when the GMBN crew tested them recently?
