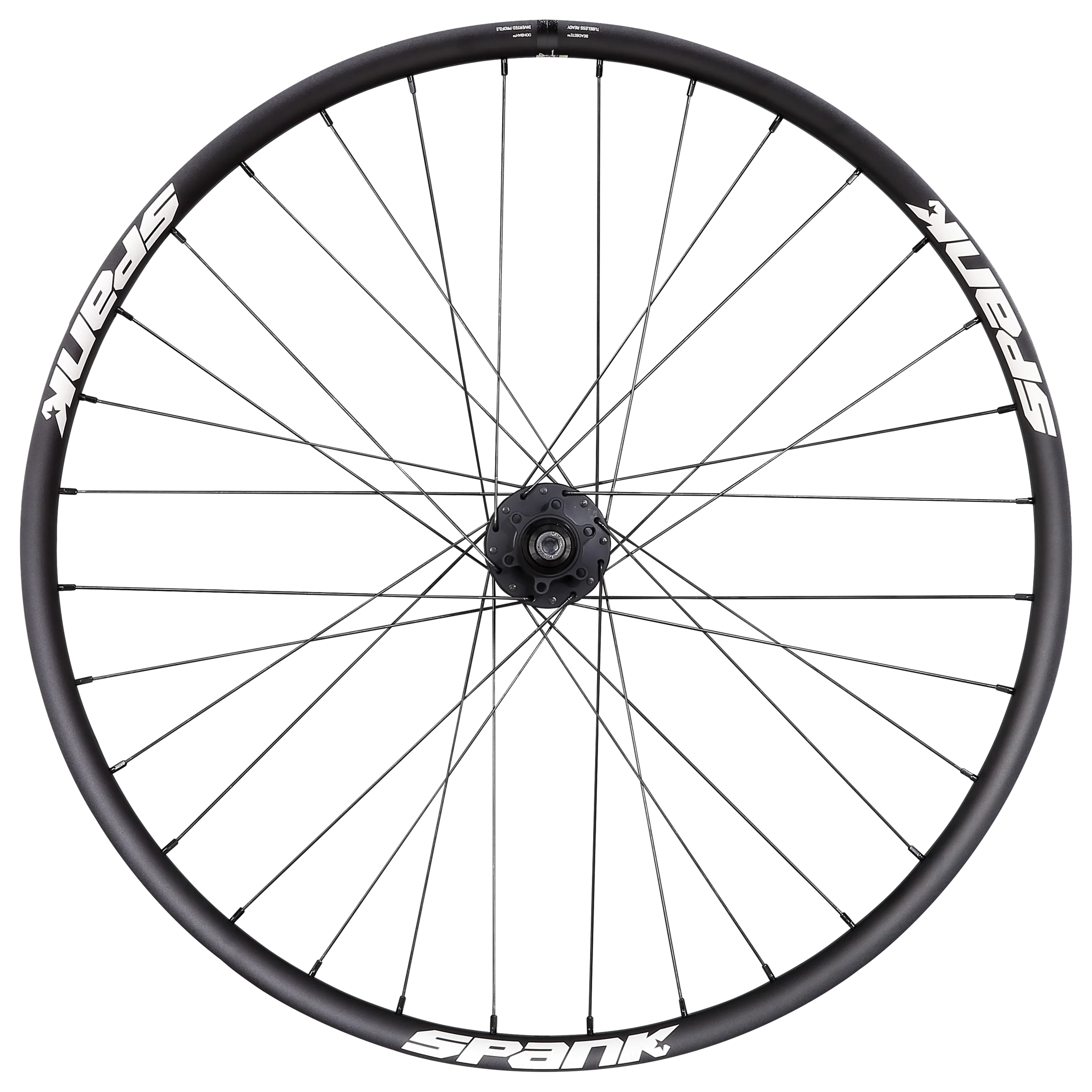

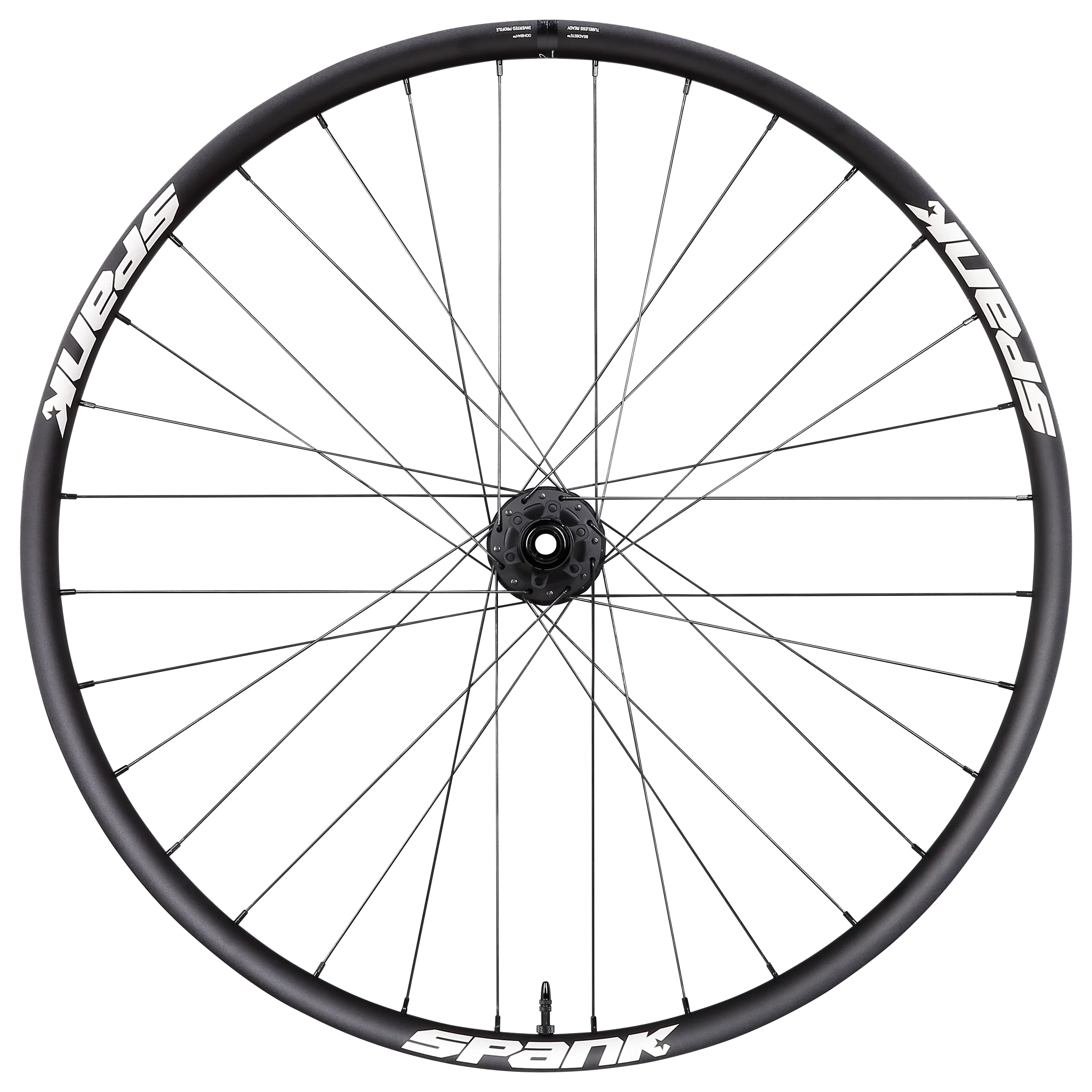

SPANK SPIKE 33 REAR Wheel

Product image 1
1 / 42

SPANK SPIKE 33 REAR Wheel

  • A high-performance alloy rim designed for freeride, enduro and downhill race use
  • Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
  • 32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
  • The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
  • Shotpeen finish to increase fatigue life and make it more durable

    Ā

    FRONT WHEELS TO PAIR WITH:

    SPIKE RACE 33

    Ā

    CLASSIFICATION & INTENDED USE:Ā  ASTM 5

    ALL MOUNTAIN
    		 TRAIL
    		 ENDURO
    		 FREERIDE
    āœ”
    āœ”
    -
    āœ”
    DOWNHILL GRAVEL XC E-BIKE
    āœ”     		- - *

    Ā * Recommended for E-Bike whenĀ adapting with SPANK HEX DRIVEĀ steel freehub (available as seperate purchase in HG, XD and Microspline.Ā Ā (See Hex Drive Service Parts)

    Ā

    HUMAN FACTOR

    SPANK's recommendations for what body type and ride style this product is suited to.

    BODY WEIGHT & RIDE STYLE: Heavy Rider Medium Rider Light Rider
    Heavy Impact
    āœ”
    āœ”
    āœ”
    Medium Impact
    āœ”
    āœ”
    āœ”
    Light impact
    āœ”
    āœ”
    āœ”

    Ā

    RIMĀ SPECIFICATIONSĀ

    HOLE COUNT:
    		 32
    INNER WIDTH (mm):
    		 28
    OUTERĀ WIDTH (mm):
    		 33
    PROFILE HEIGHT:
    		 22
    TYRE FIT
    		 1.9" to 2.5"

    Ā

    BUILDĀ SPECIFICATIONSĀ

    BUILD:
    		 Handbuilt
    HUB: SPANK HEX J-TYPE
    SPOKES:
    		 J-Hook, tripple butted 2.2/1.8/2.0
    NIPPLES:
    		 Brass external
    LACING:
    		 3 cross lacing
    VALVE: F/V Presta
    TUBELESS: Tubeless taped & valved

    Ā

    HUB SPECIFICATIONS:

    ENGAGEMENT:
    HEX DRIVE 102T / 3.5Ā° / 6 Pawl
    HOLE COUNT:
    32H J-Hook
    DISC MOUNT:
    6-bolt
    MATERIAL:
    CNC optimized forged alloy hub body, alloy axle, alloy freehub body

    Ā

    Ā

    VARIANT SPECS

    (Available factory standard in XD and Shimano HG.Ā  Microspline freehubs available).Ā


    		 HUB HUB SPACING BOOST FREEHUB HOLE COUNT ADAPTER INCL. WEIGHT ERD ETRTO SPOKE LENGTH SPOKE LENGTH
    26"
    HEX J TYPE     		12x142 - HG 32H 12x135 997g 529++ 559x28 R-255 L-258
    HEX J TYPE
    12x142     		- XD 32H 12x135 989g
    529++
    559x28
    R-255
    L-258
    HEX J TYPE     		12x150 - HG 32H 12x157 1008g
    529++
    559x28
    R-255
    L-258
    HEX J TYPE     		12x150 - XD 32H 12x157 1000g
    529++
    559x28
    R-255
    L-258
    S/S BOLT ON 10x135 - 11T 32H - 1124g
    529++
    559x28
    R-255
    L-258
    27.5"
    HEX J TYPE
    12x142     		- HG
    32H     		12x135 1038g 554++ 584x28 R-266 L-269
    HEX J TYPE
    12x142     		- XD
    32H
    12x135     		1030g
    554++
    584x28
    R-266
    L-269
    HEX J TYPE     		12x150 - HG
    32H     		12x157 1049g
    554++
    584x28
    R-266
    L-269
    HEX J TYPE
    12x150     		- XD
    32H
    12x157     		1041g
    554++
    584x28
    R-266
    L-269
    HEX J TYPE     		12x148 BOOST HG
    32H     		- 1044g
    554++
    584x28
    R-266
    L-269
    HEX J TYPE     		12x148 BOOST XD
    32H     		- 1036g
    554++
    584x28
    R-266
    L-269
    29"
    HEX J TYPE     		12x150 - HG
    32H     		12x157 1086g 591++ 622x28 R-285 L-288
    HEX J TYPE
    12x150     		- XD
    32H     		12x157 1078g
    591++
    622x28
    R-285
    L-288
    HEX J TYPE
    12x148
    BOOST     		HG
    32H     		- 1081g
    591++
    622x28
    R-285
    L-288
    HEX J TYPE
    12x148
    BOOST     		XD
    32H     		- 1073g
    591++
    622x28
    R-285
    L-288

    Ā

    Use the table below to determine compatible adapters & service parts, or visit the service parts collection byĀ clicking here.

    ADAPTERSĀ COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

    Boost R148:

    HEX Rear Hub QRx135/141 Adapter

    R150/157:

    N/A

    R135/142:

    HEX Rear Hub QRx135/141 Adapter


    HEX Rear Hub 10x135 Adapter

    Ā

    SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

    HEX Rear HG/HGR Hub Replacement Bearing Kit

    HEX Rear XD/XDR Hub Replacement Bearing Kit

    HEX Boost Rear Hub Alloy Axle Shaft

    HEX Rear Hub 135/142mm Alloy Axle Shaft

    HEX Rear Hub 150/157mm Alloy Axle Shaft

    HEX Rear Hub HG Alloy Anti-Bite Freehub

    Ā HEX Rear Hub XD Alloy Freehub

    Ā

    Ā

    Wondering how strong our wheels are?Ā  See what happened when the GMBN crew tested them recently?
